Storm Water Drain Cleaning Chamber

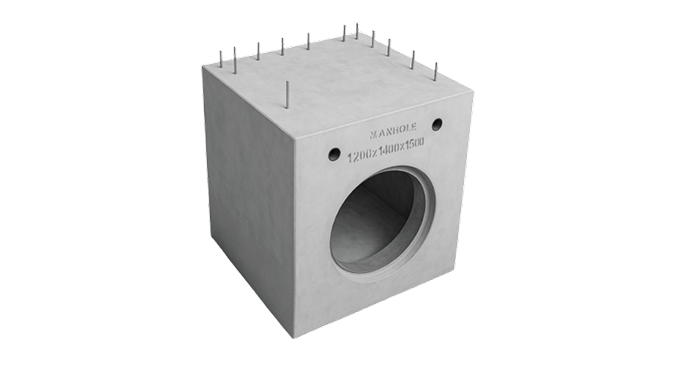

A Precast Storm Water Drain Chamber is an underground concrete structure typically fitted with a solid lid. it collects stormwater runoff and routes it through underground pipes, allowing sediment and debris to settle. It also can be used as a Inspection chamber / Junction in a pipe system to allow access.
| Dimensions Outer | Dimensions Inner | Max Pipe Outer / Inlet |
|---|---|---|
| 1140 mm x 1140 mm | 900 mm x 900 mm | Up-to Diameter 300 mm |
| 1400 mm x 1200 mm | 1050 mm x 850 mm | 600 mm |
| 1500 mm x 1500 mm | 1150 mm x 1150 mm | 700 mm |
| 1600 mm x 1200 mm | 1200 mm x 900 mm | 900 mm |
| 1150 mm x 850 mm | 1400 mm x 800 mm | 1000 mm |
Precast Catch Pit
A Catch Pit is essentially an empty chamber with an inlet pipe and an outlet pipe set at a level above the floor of the pit. Any sediment carried by the system settles out whilst in the Catch Pit, from where it can be periodically pumped out or removed. Catch Pits are a precast concrete drainage product that are recommended for use as a filter and collector in land drainage systems that do not make use of any sort of geo-membrane.
Sizes:
300 mm x 300 mm x 400 mm
450 mm x 450 mm x 450 mm
500 mm x 650 mm x 600 mm
600 mm x 600 mm x 600 mm
Useful Product for
surface water collection
What makes this product exceptional?
- High-Quality manufacturing
- Durable and reliable
- Versatile applications
- Speedy installation
